Undrained cyclic tests with isotropic consolidation and stress cycles: Variation of displacement rate   Data of all tests of this series

Test series 1: p₀ = 200 kPa, q^ampl = 45 kPa

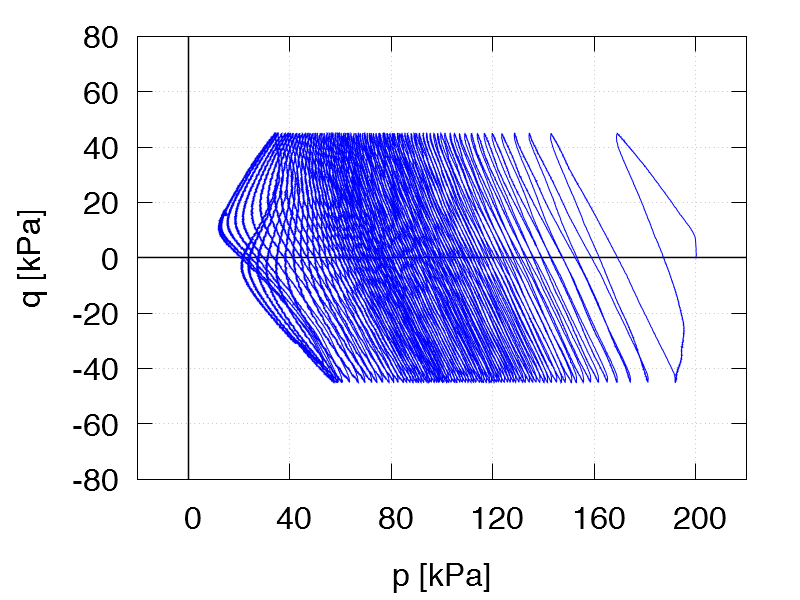

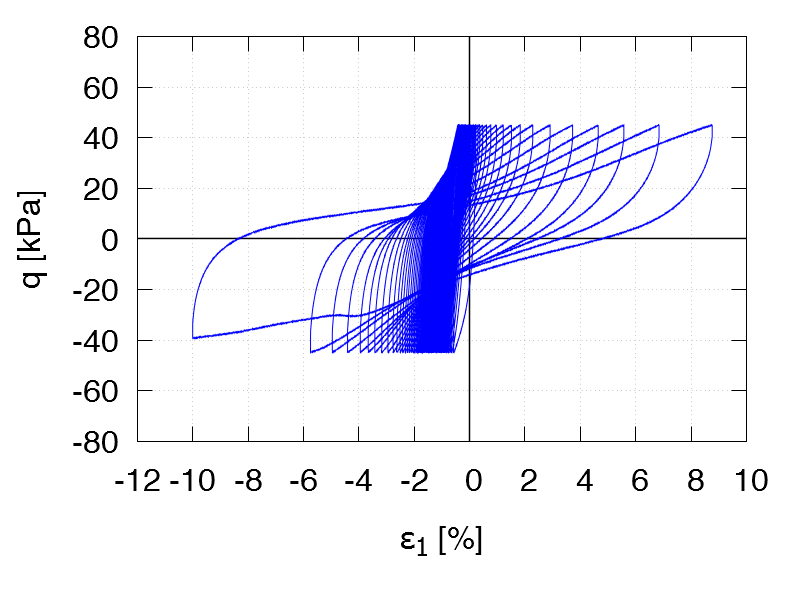

Test C9 e0 = 1.143 Rate 0.01 mm/min Test data
Test C10 e0 = 1.272 Rate 0.02 mm/min Test data

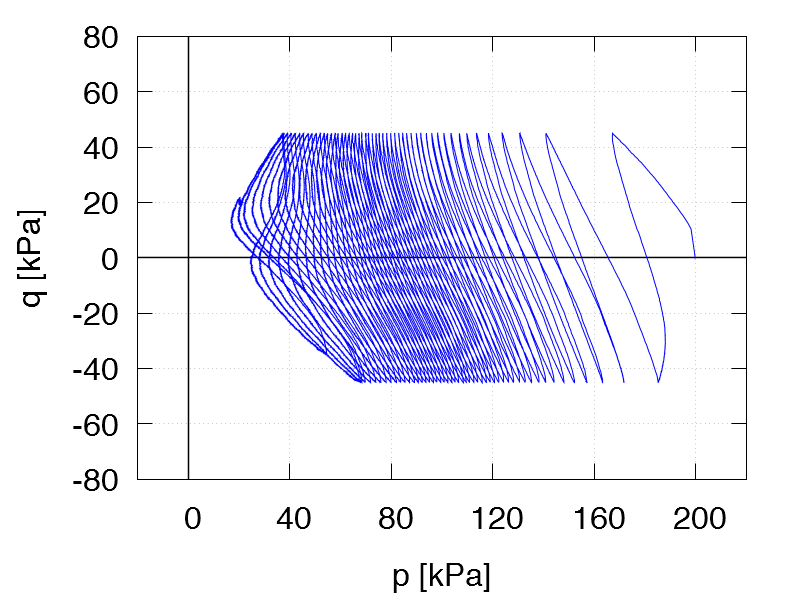

Test C11 e0 = 1.294 Rate 0.05 mm/min Test data
Test C3 e0 = 1.224 Rate 0.1 mm/min Test data
Test C4 e0 = 1.193 Rate 0.1 mm/min Test data

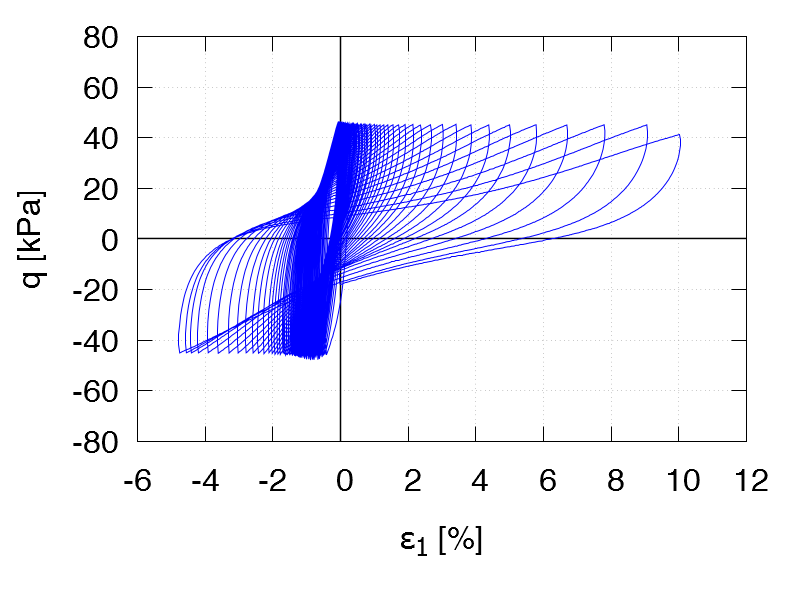

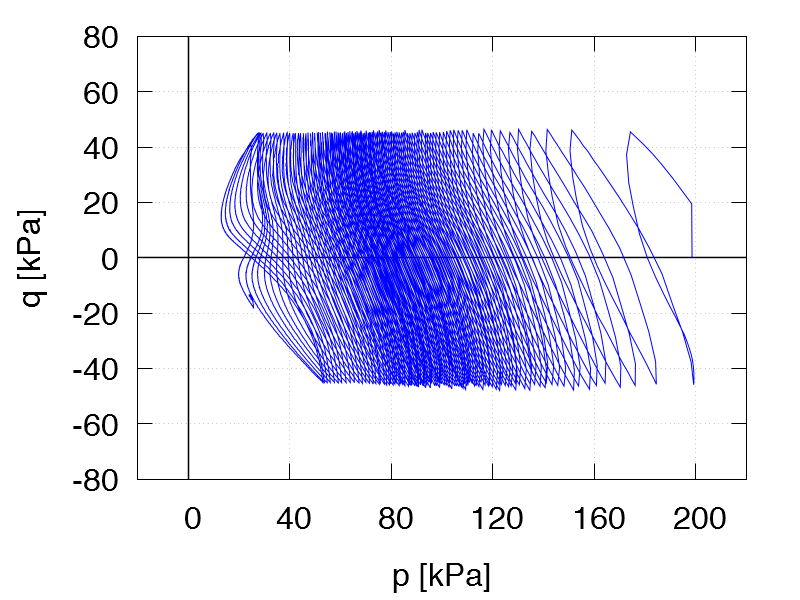

Test C12 e0 = 1.221 Rate 0.5 mm/min Test data

Test series 2: p₀ = 200 kPa, q^ampl = 50 kPa

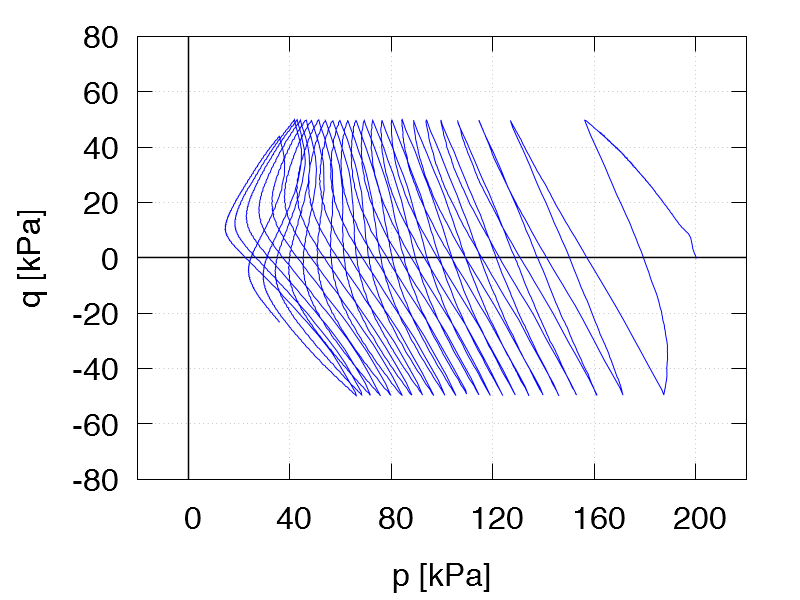

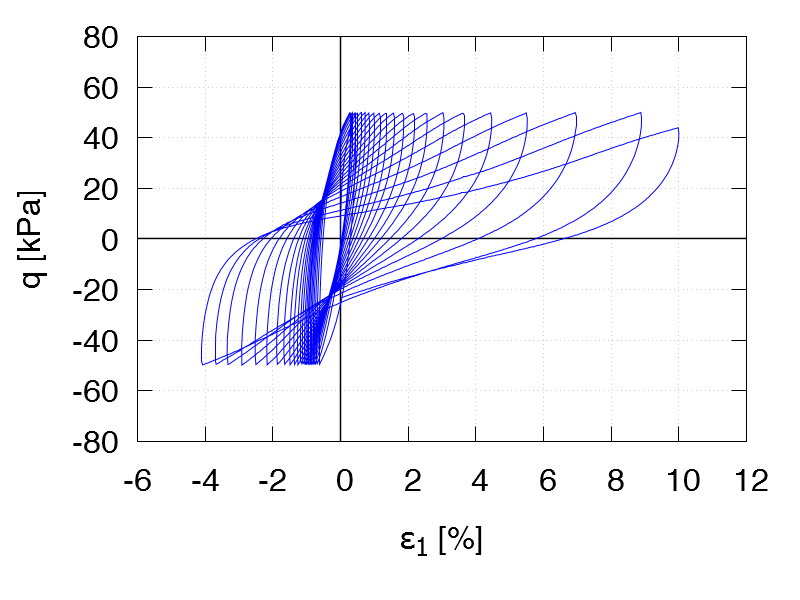

Test C13 e0 = 1.293 Rate 0.01 mm/min Test data

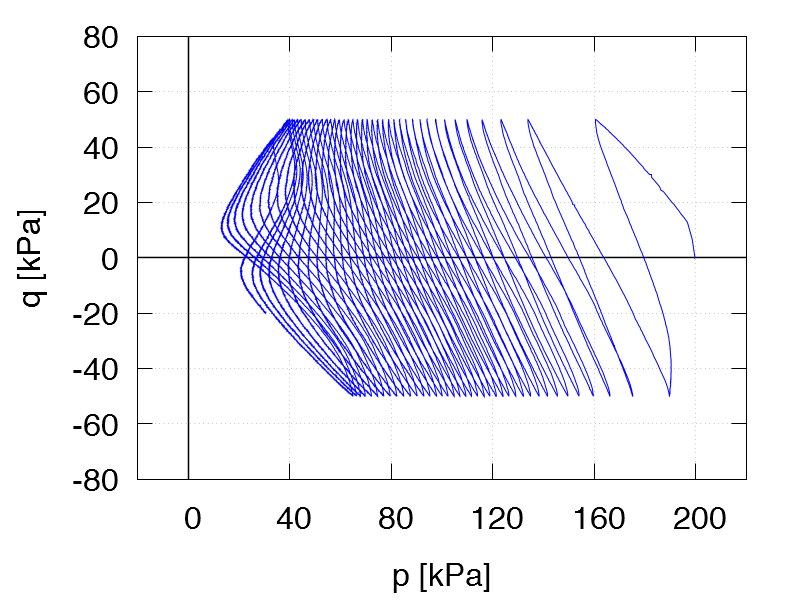

Test C14 e0 = 1.228 Rate 0.05 mm/min Test data
Test C5 e0 = 1.145 Rate 0.1 mm/min Test data
Test C6 e0 = 1.252 Rate 0.1 mm/min Test data
Test C15 e0 = 1.298 Rate 0.5 mm/min Test data
