Undrained cyclic tests with anisotropic consolidation and stress cycles: Variation of initial stress ratio   Data of all tests of this series

All tests: p₀ = 200 kPa, q^ampl = 30 kPa, Displacement rate 0.1 mm/min

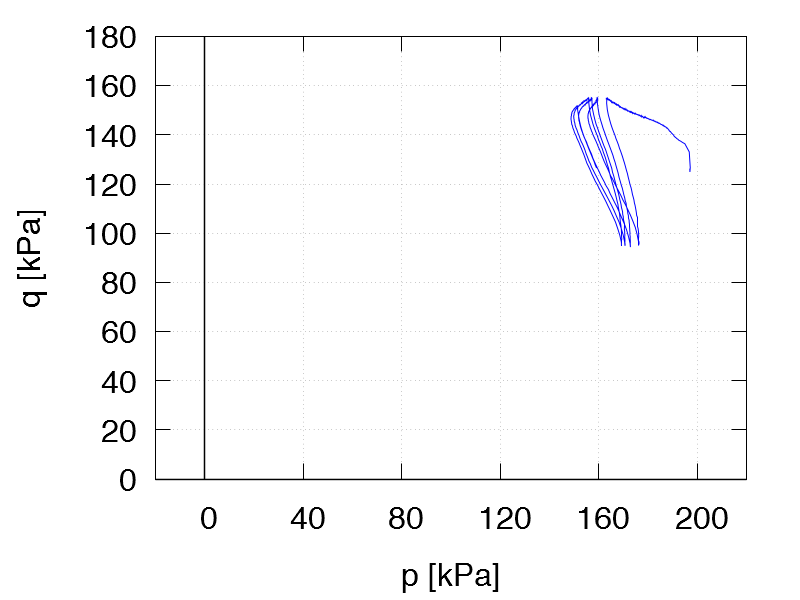

Test C23 η0 = 0.625 e0 = 1.206 Test data

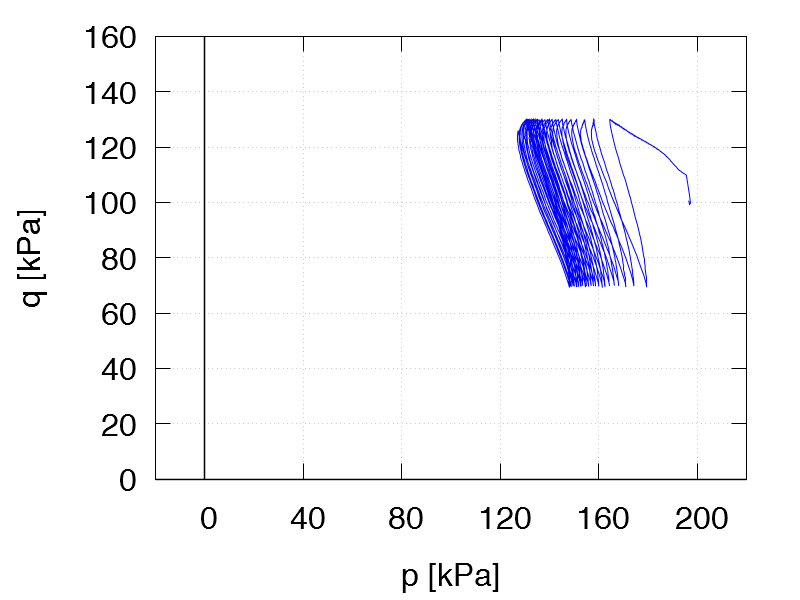

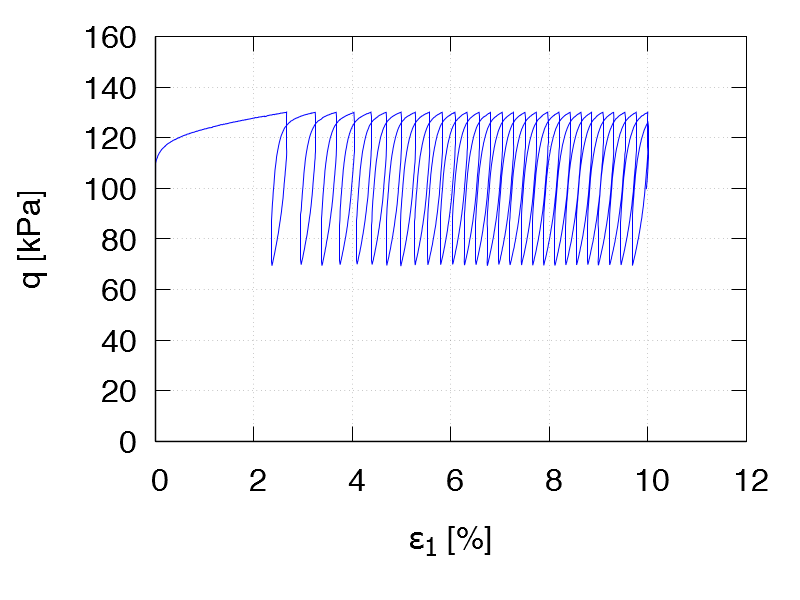

Test C24 η0 = 0.5 e0 = 1.212 Test data

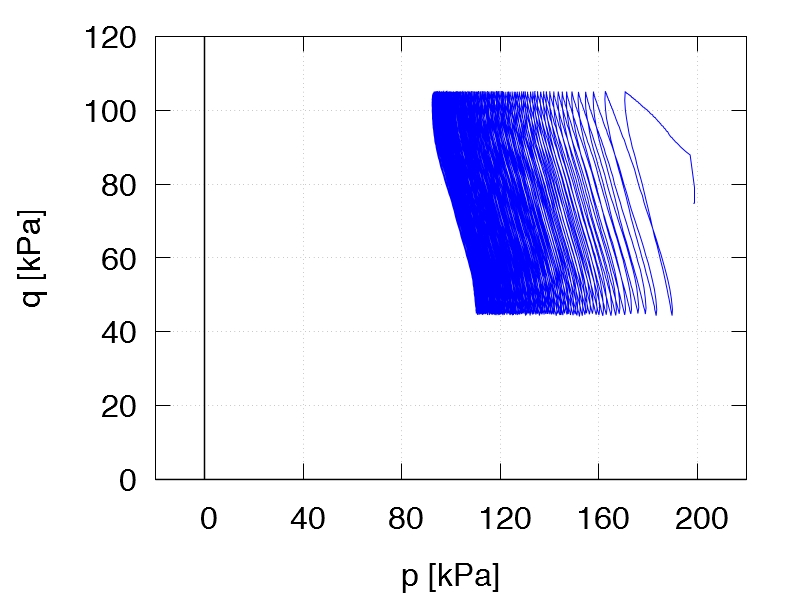

Test C25 η0 = 0.375 e0 = 1.200 Test data

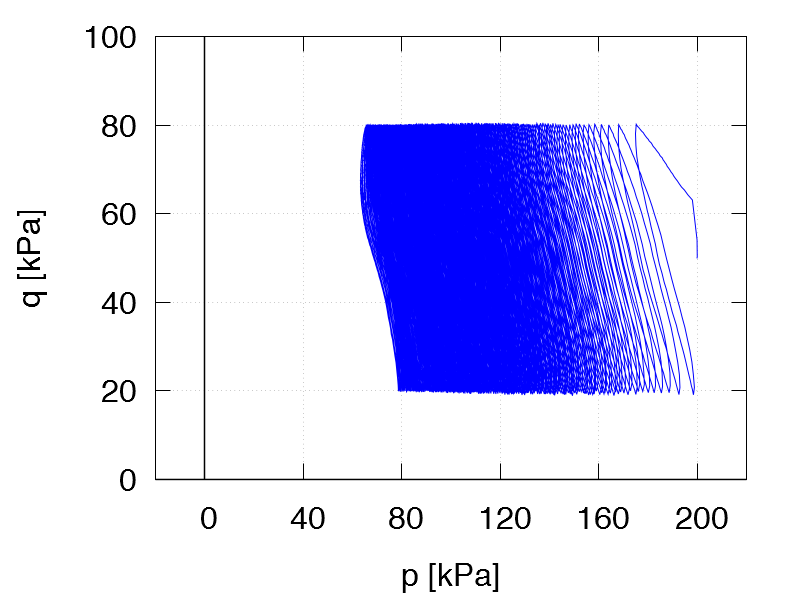

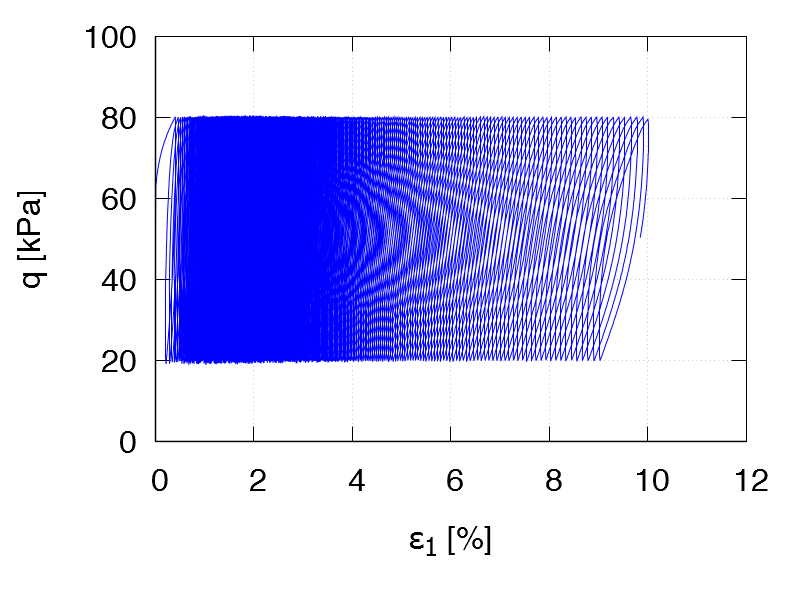

Test C26 η0 = 0.25 e0 = 1.249 Test data

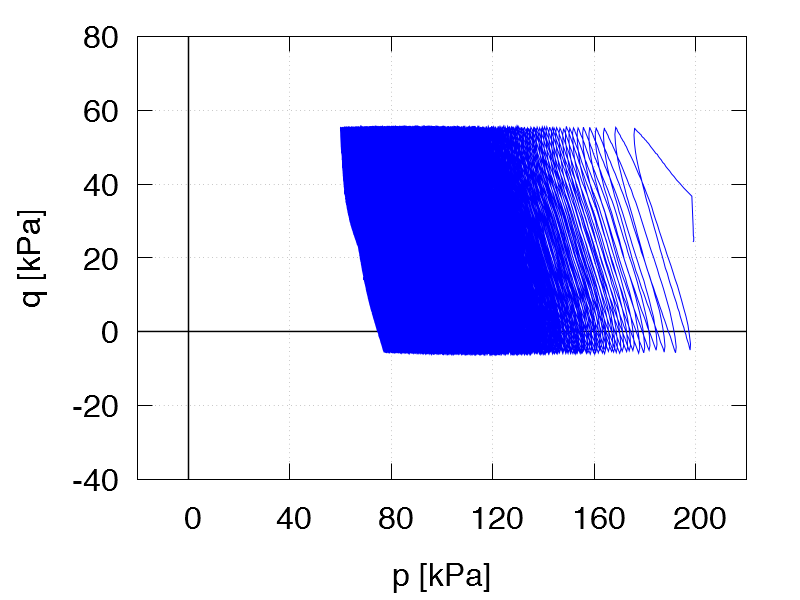

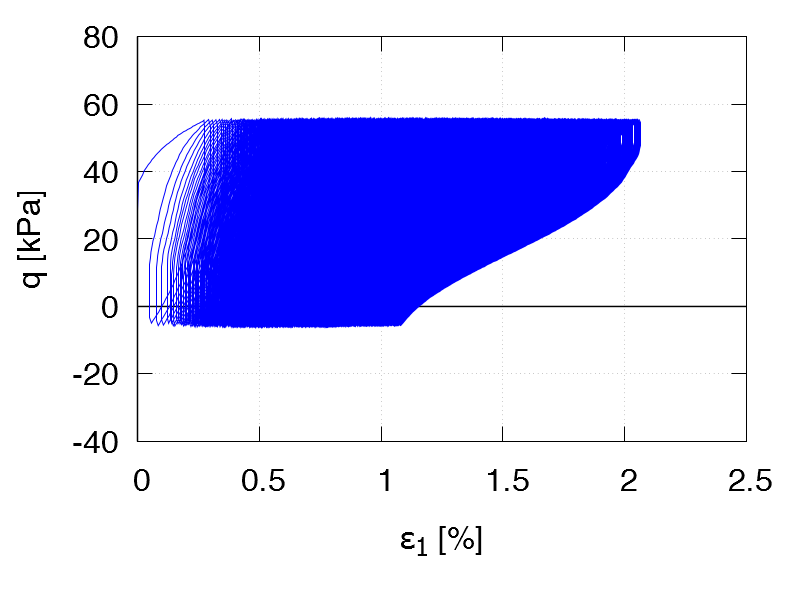

Test C27 η0 = 0.125 e0 = 1.319 Test data

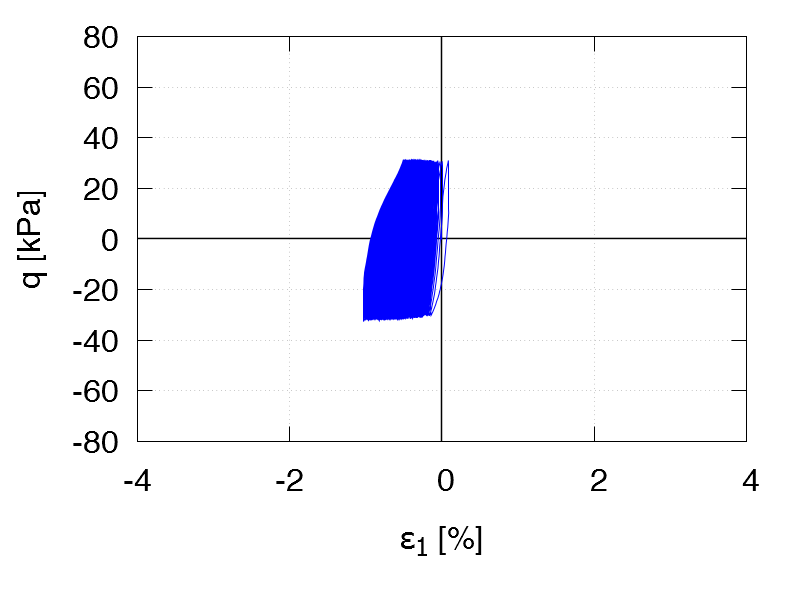

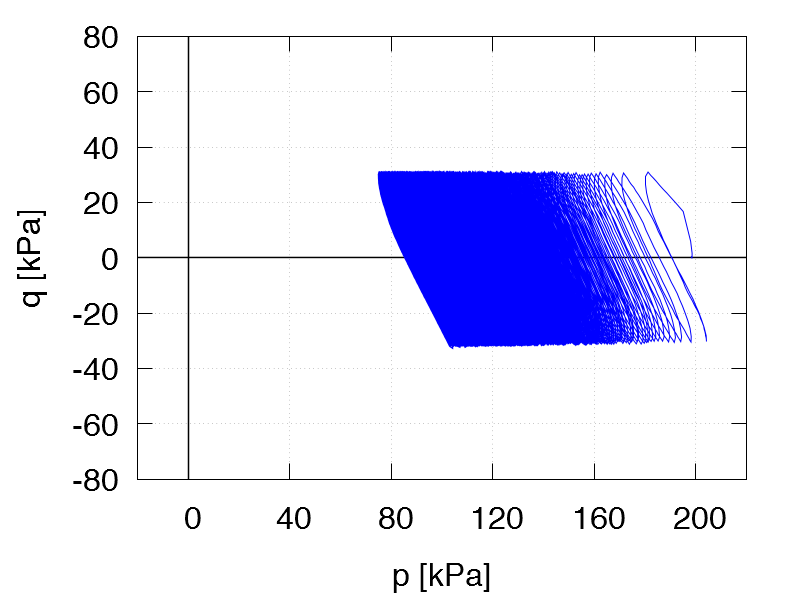

Test C1 η0 = 0 e0 = 1.250 Test data

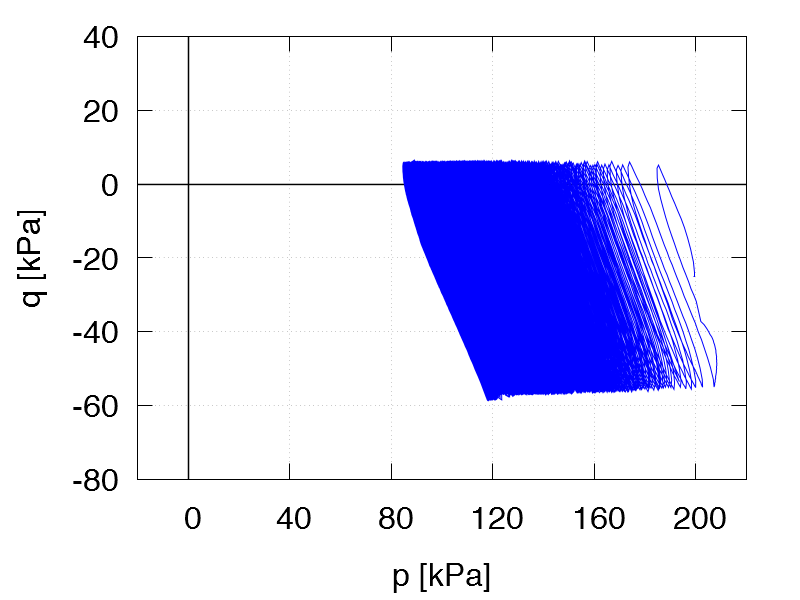

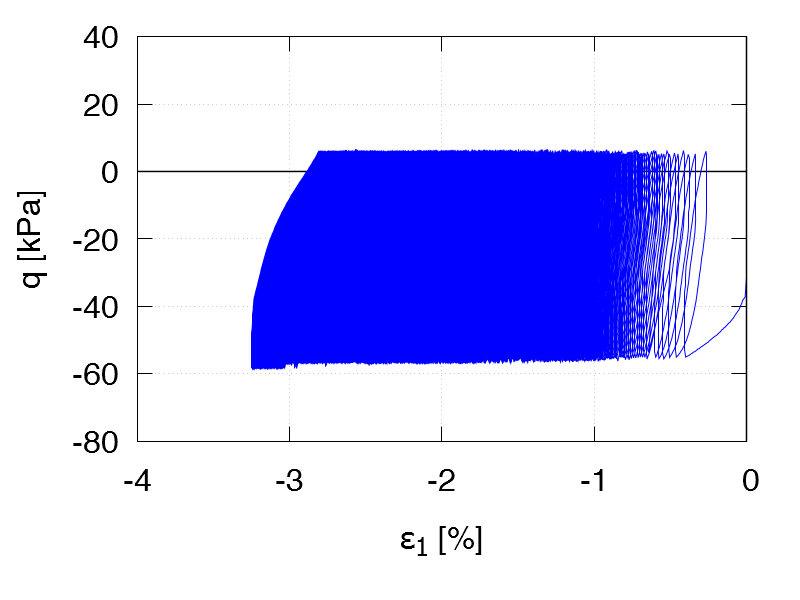

Test C28 η0 = -0.125 e0 = 1.248 Test data

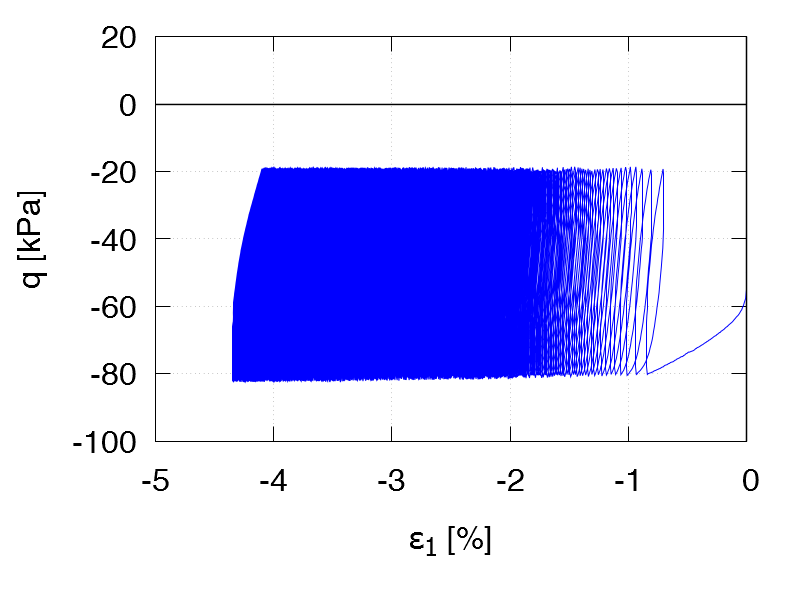

Test C29 η0 = -0.25 e0 = 1.248 Test data

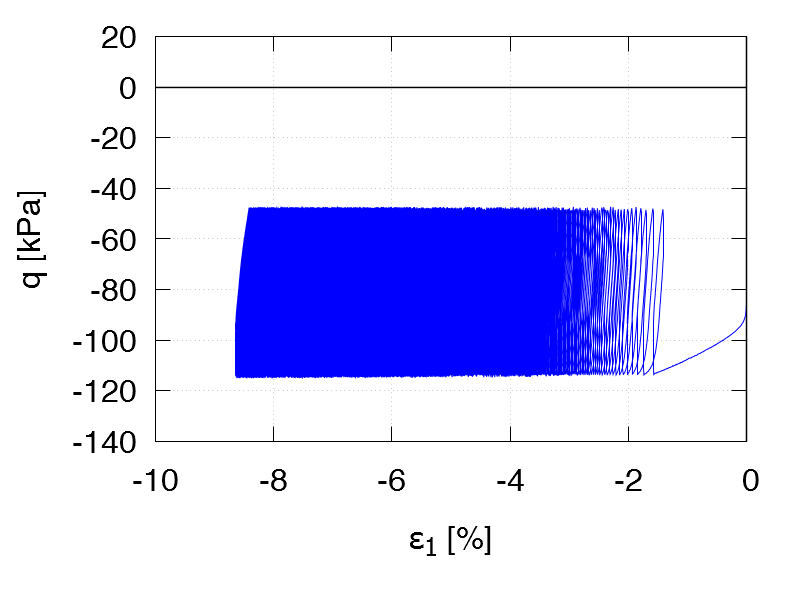

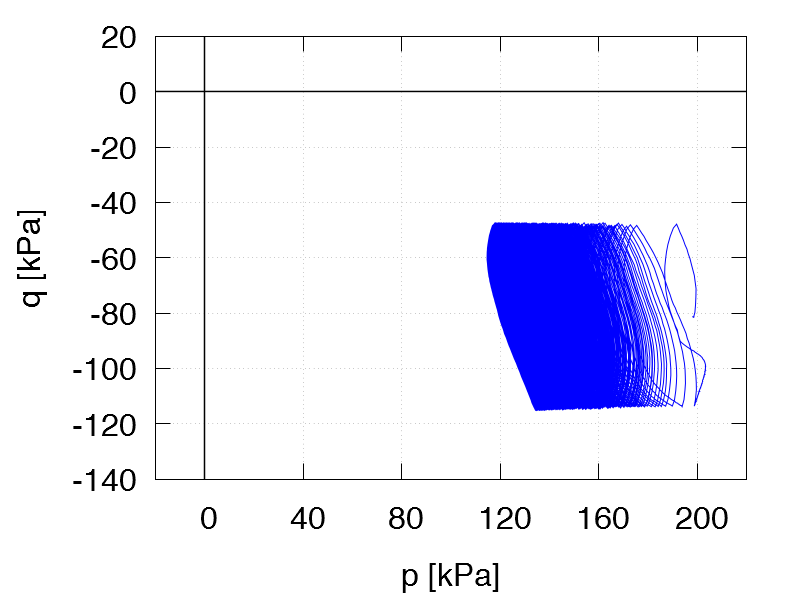

Test C30 η0 = -0.375 e0 = 1.229 Test data

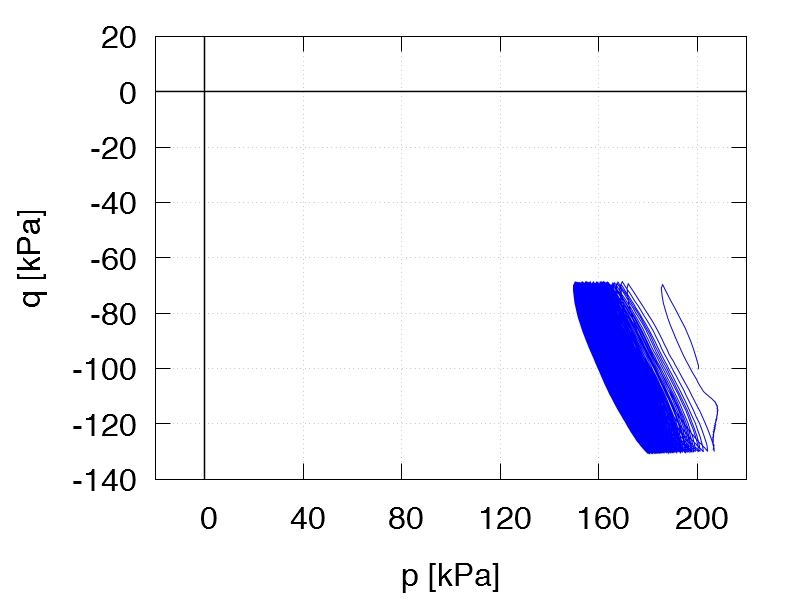

Test C31 η0 = -0.5 e0 = 1.180 Test data
