Undrained cyclic tests with isotropic consolidation and stress cycles: Variation of initial mean stress   Data of all tests of this series

All tests: q^ampl/p₀ = 0.2, Displacement rate 0.1 mm/min

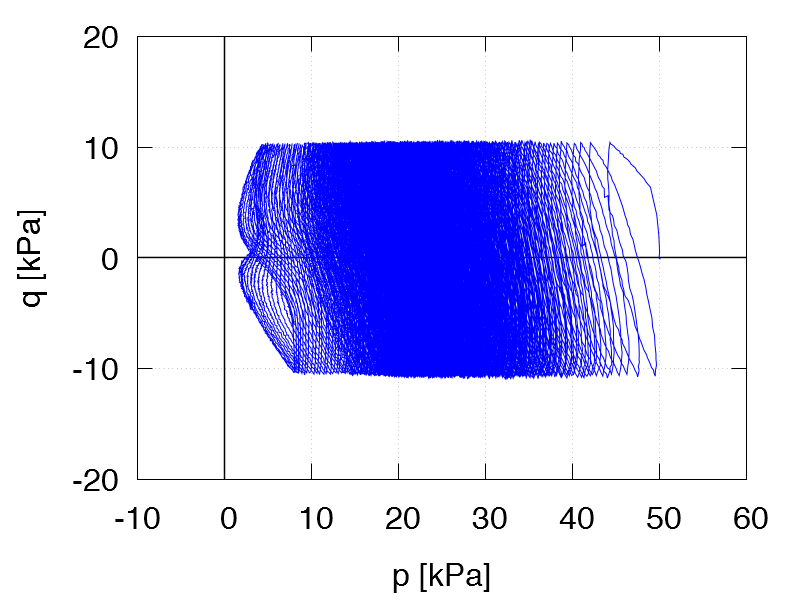

Test C16 p0 = 50 kPa e0 = 1.397 qampl = 10 kPa Test data

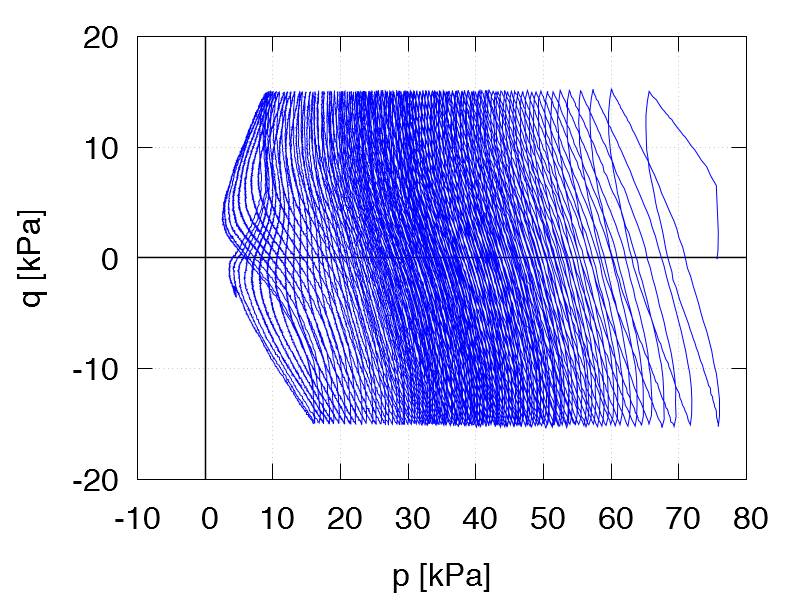

Test C17 p0 = 75 kPa e0 = 1.410 qampl = 15 kPa Test data

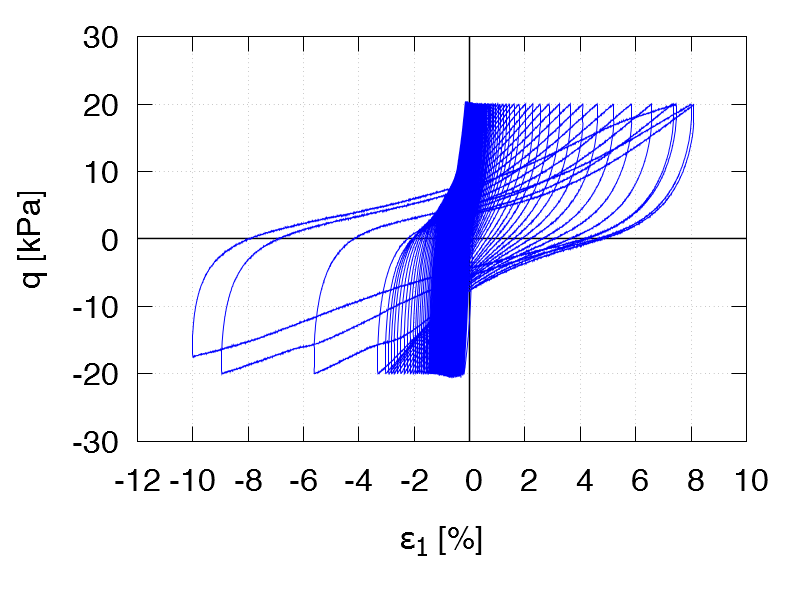

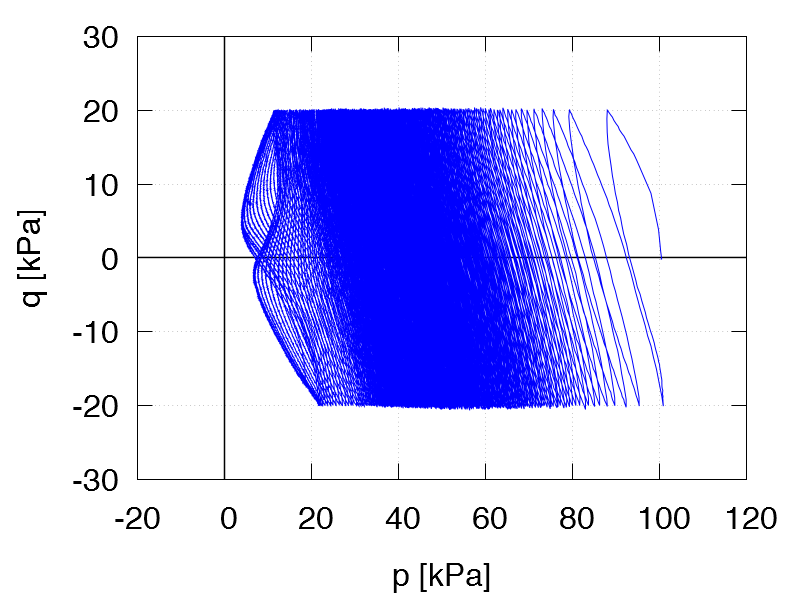

Test C18 p0 = 100 kPa e0 = 1.244 qampl = 20 kPa Test data

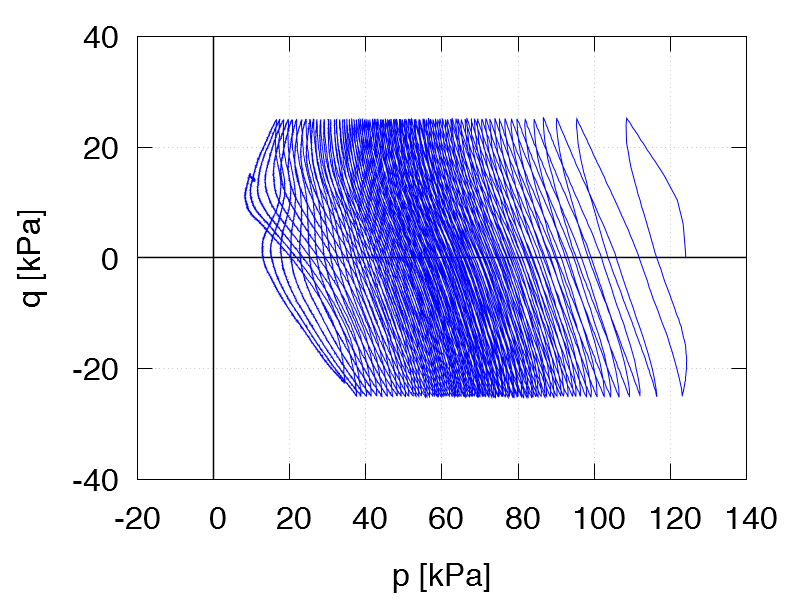

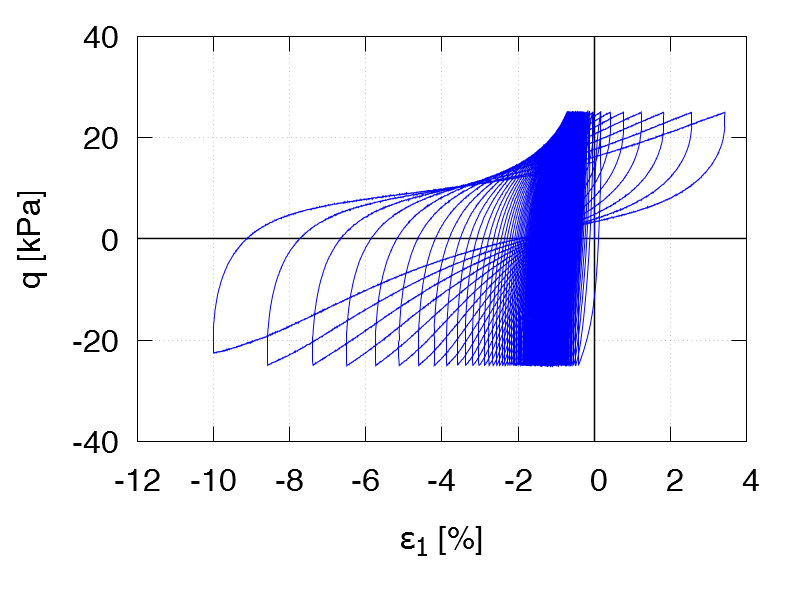

Test C19 p0 = 125 kPa e0 = 1.295 qampl = 25 kPa Test data

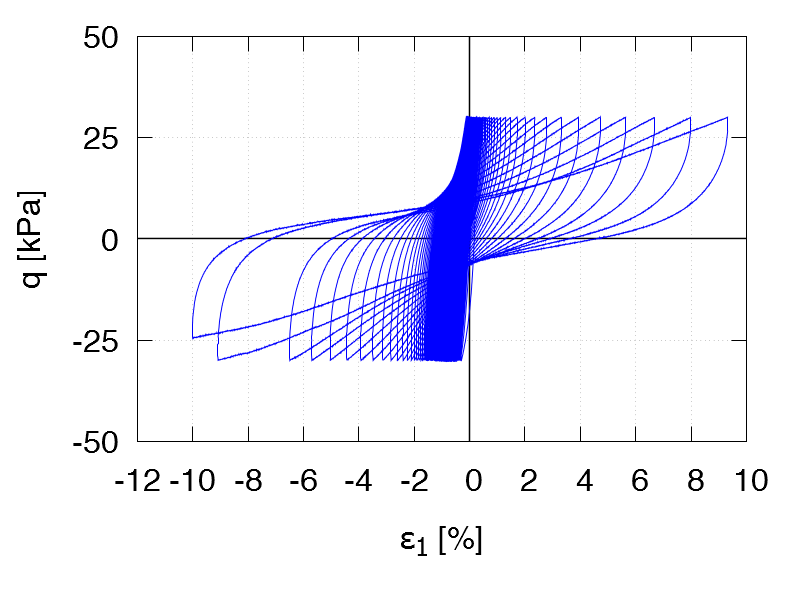

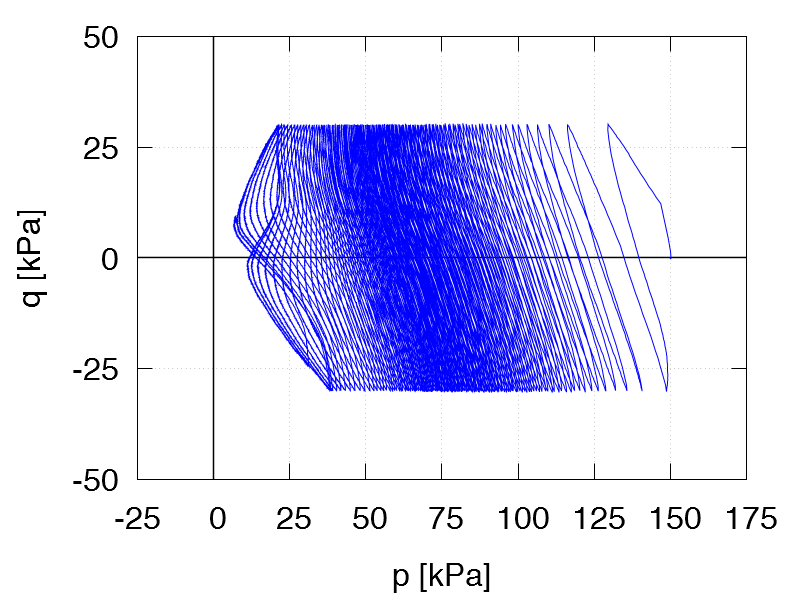

Test C20 p0 = 150 kPa e0 = 1.272 qampl = 30 kPa Test data

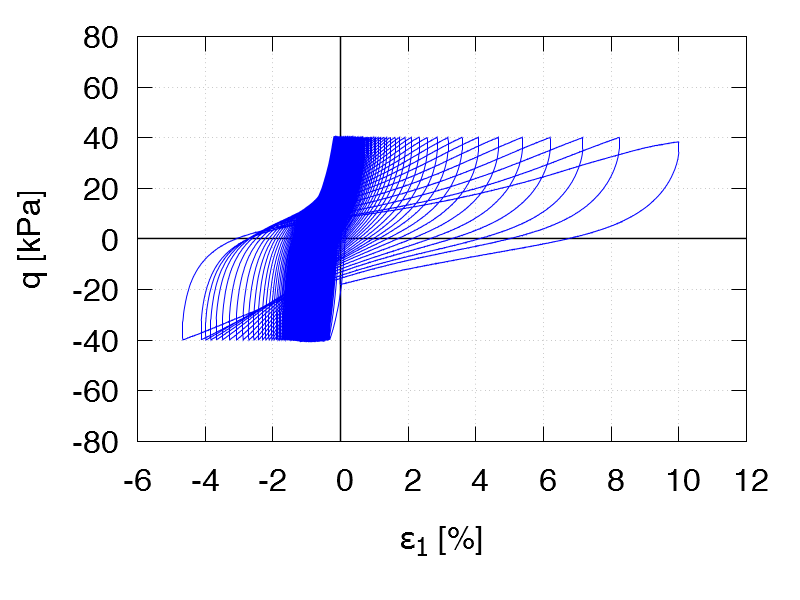

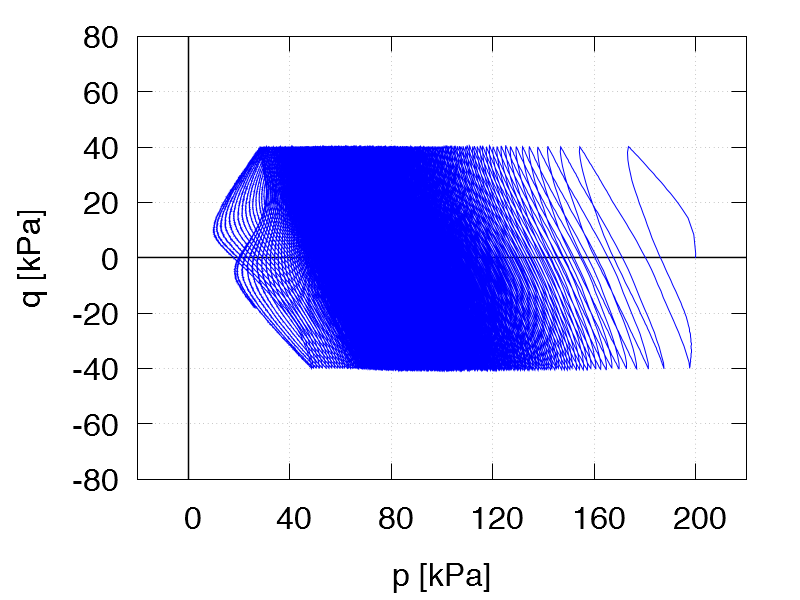

Test C2 p0 = 200 kPa e0 = 1.147 qampl = 40 kPa Test data

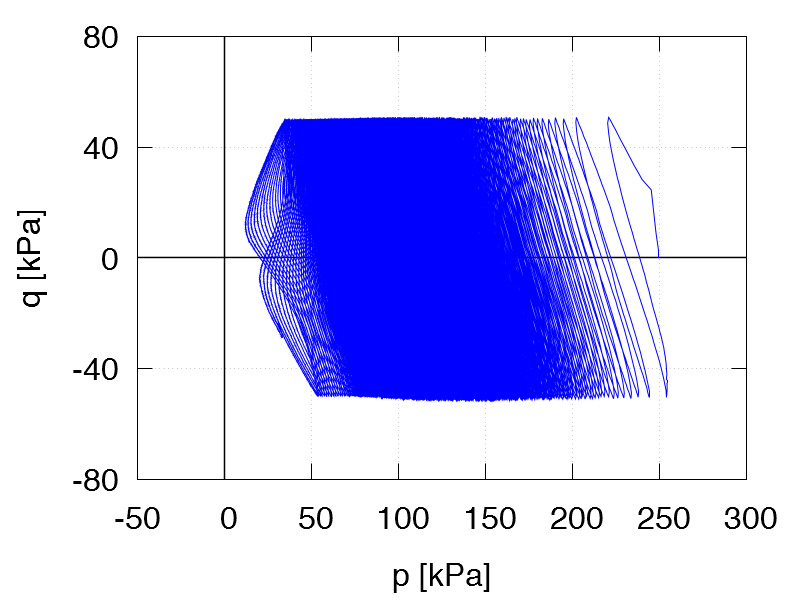

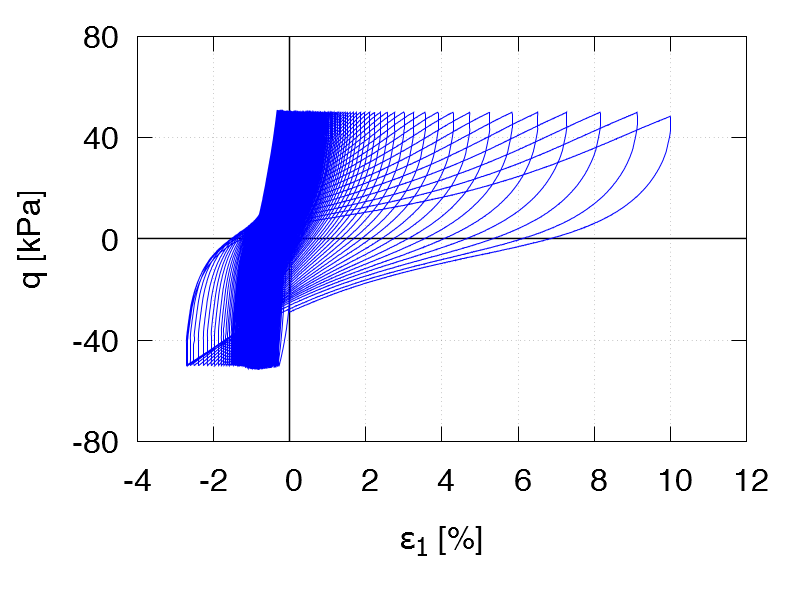

Test C21 p0 = 250 kPa e0 = 1.112 qampl = 50 kPa Test data

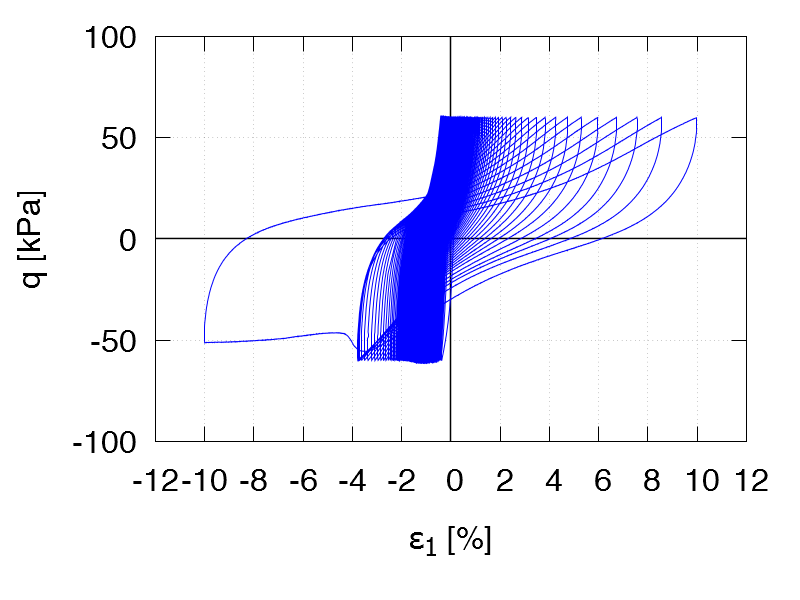

Test C22 p0 = 300 kPa e0 = 1.143 qampl = 60 kPa Test data
